Infinite Electrotech Pvt. Ltd.
Total solution to Earthing and Lightning Protection
Industrial Segment
Ultrasafe Permanent Earthing System

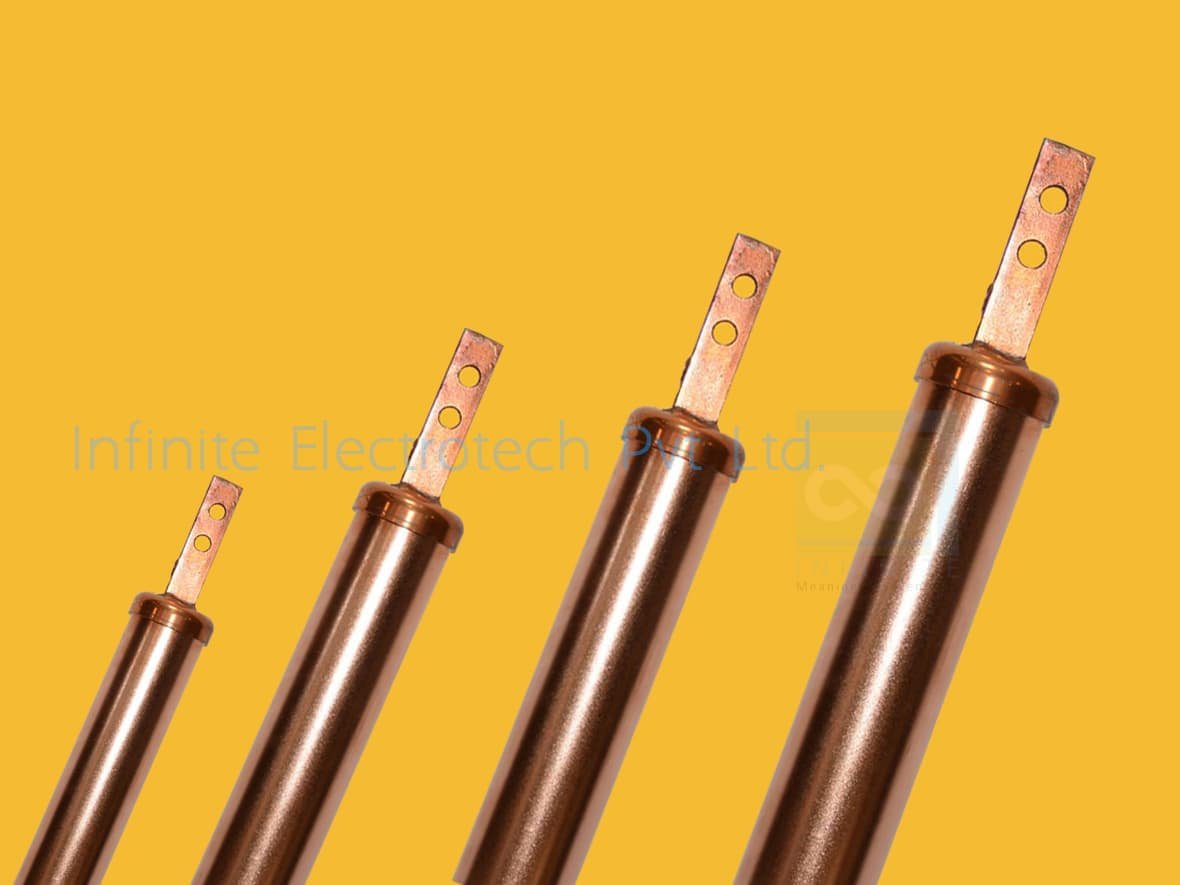

I. Copper Bonded Earthing Rod
| Model No | Diameter (mm) | Length (mm) | Description |
|---|---|---|---|
| US-CB-003 | 12.7 | 2000 | UltraSafe Copper Bonded earthing kit inclusive of *Earthing electrode (Dia 12.7 mm, Length 2000 mm) *Copper bonded earth terminal *UltraSafe ZoGEM-20Kg bag |
| US-CB-004 | 17.2 | 2000 | UltraSafe Copper Bonded earthing kit inclusive of *Earthing electrode (Dia 17.2 mm, Length 2000 mm) *Copper bonded earth terminal *UltraSafe ZoGEM-20Kg bag |
| US-CB-005 | 25.0 | 2000 | UltraSafe Copper Bonded earthing kit inclusive of *Earthing electrode (Dia 25.0 mm, Length 2000 mm) *Copper bonded earth terminal *UltraSafe ZoGEM-20Kg bag |
| US-CB-006 | 12.7 | 3000 | UltraSafe Copper Bonded earthing kit inclusive of *Earthing electrode (Dia 12.7 mm, Length 3000 mm) *Copper bonded earth terminal *UltraSafe ZoGEM-25Kg bag |
| US-CB-007 | 17.2 | 3000 | UltraSafe Copper Bonded earthing kit inclusive of *Earthing electrode (Dia 17.2 mm, Length 3000 mm) *Copper bonded earth terminal *UltraSafe ZoGEM-25Kg bag |
| US-CB-008 | 25.0 | 3000 | UltraSafe Copper Bonded earthing kit inclusive of *Earthing electrode (Dia 25 mm, Length 3000 mm) *Copper bonded earth terminal *UltraSafe ZoGEM-25Kg bag |
II. Copper Bonded Pipe in Pipe Earthing
| Model No | Diameter (mm) | Length (mm) | Description |
|---|---|---|---|
| EN-PIP-CB03 | 48-50 | 2000 | Ultra Safe Copper bonded pipe in pipe earthing kit inclusive of *Earthing pipe (Dia 48-50 mm, Length 2000 mm) *UltraSafe ZoGEM-20Kg bag. |
| EN-PIP-CB04 | 76-80 | 2000 | Ultra Safe Copper bonded pipe in pipe earthing kit inclusive of *Earthing pipe (Dia 76-80 mm, Length 2000 mm) *UltraSafe ZoGEM-20Kg bag. |
| EN-PIP-CB05 | 48-50 | 3000 | Ultra Safe Copper bonded pipe in pipe earthing kit inclusive of *Earthing pipe (Dia 48-50 mm, Length 3000 mm) *UltraSafe ZoGEM-25Kg bag. |
| EN-PIP-CB06 | 76-80 | 3000 | Ultra Safe Copper bonded pipe in pipe earthing kit inclusive of *Earthing pipe (Dia 76-80 mm, Length 3000 mm) *UltraSafe ZoGEM-25Kg bag. |
III. HDGI Pipe in Pipe Earthing
| Model No | Diameter (mm) | Length (mm) | Description |
|---|---|---|---|
| US-PIP-GI03 | 48-50 | 2000 | Ultra Safe PIP HDGI earthing kit inclusive of *Earthing pipe size (Dia 48-50 mm Length 2000 mm) *UltraSafe ZoGEM-20Kg bag. |
| US-PIP-GI04 | 76-80 | 2000 | Ultra Safe PIP HDGI earthing kit inclusive of *Earthing pipe size (Dia 76-80 mm Length 2000 mm) *UltraSafe ZoGEM-20Kg bag. |
| US-PIP-GI03 | 48-50 | 3000 | Ultra Safe PIP HDGI earthing kit inclusive of *Earthing pipe size (Dia 48-50 mm Length 3000 mm) *UltraSafe ZoGEM-25Kg bag. |
| US-PIP-GI03 | 76-80 | 3000 | Ultra Safe PIP HDGI earthing kit inclusive of *Earthing pipe size (Dia 76-80 mm Length 3000 mm) *UltraSafe ZoGEM-25Kg bag. |
