Industrial Segment

I.Ultrasafestrike ESE Lighting Arrestor

PIEZO ELECTRIC LIGHTNING PROTECTION:

The specific function of Ultra Safestrike lightning arrestor is producing an upward stream of ionized particles pointed to clouds that will channel the eventual electrical discharge from its beginning. The lightning strike is quickly captured from the beginning and discharged immediately; Ultrasafe Strike ESE can be used to protect wide areas. This is also ideal for the protection of tall and large structures.

Our Ultrasafe Strike ESE lightning rod is in compliance with NFC-17102, UNE-21186 Standards.

Model No	IPDC 3.1	IPDC 3.3	IPDC 4.3	IPDC 5.3	IPDC 6.3	IPDC 6.4
Δt	15μs	25μs	34μs	43μs	54μs	60μs
Level I	35m	45m	54m	63m	74m	80m
Level II	43m	54m	63m	72m	83m	89m
Level III	54m	65m	74m	84m	95m	102m
Level IV	63m	75m	75m	95m	106m	113m

Product Features and Benefits

• 100% of efficacy in discharge capture.
• High level of protection.
• Electric continuity guaranteed. The device doesn't offer any resistance to discharge conduction.
• Lightning rod without electrical components.
• Maximum durability guaranteed.
• Ultra Safestrike Lightning rod preserves its initial properties after each discharge.
• Because it contains no electronic elements, there are no replaceable parts.
• It doesn't need external power supply.
• Operation guaranteed in any atmospheric condition.

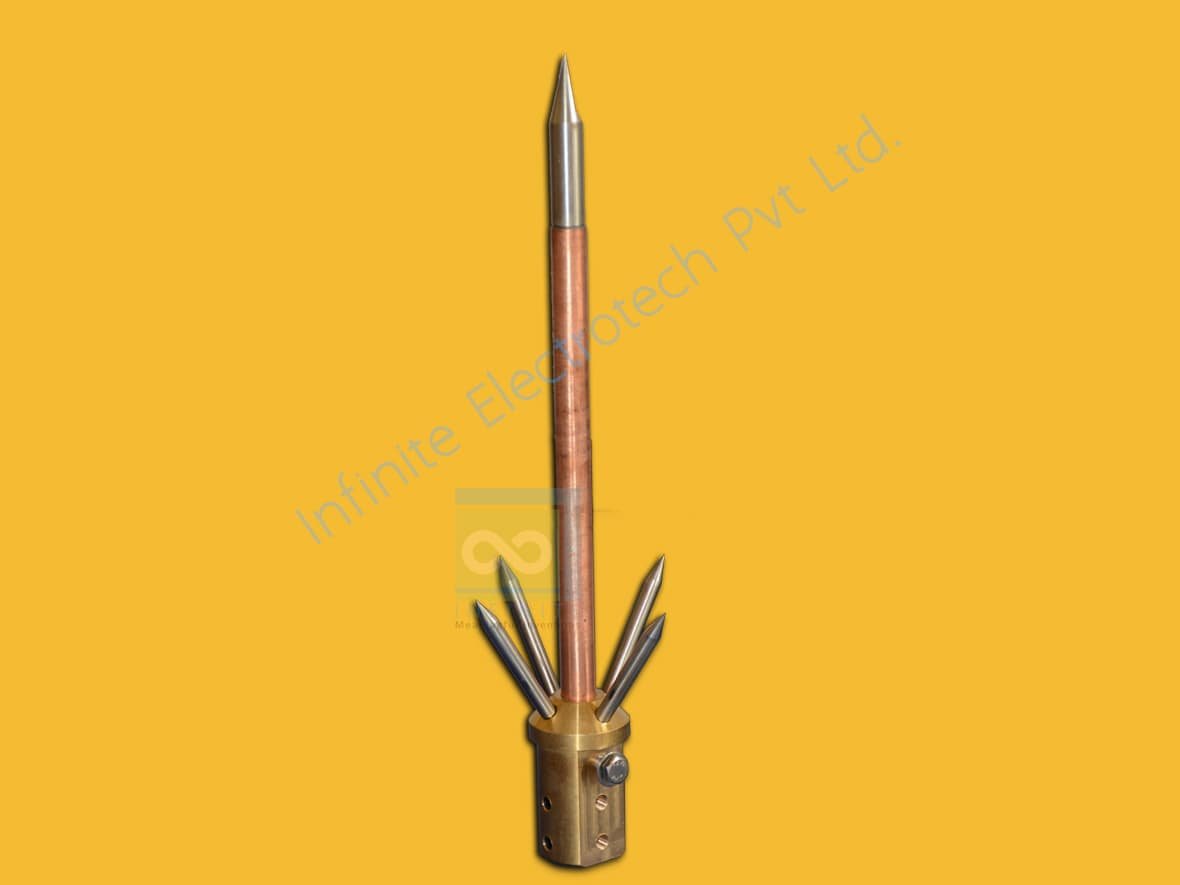

II.Ultra Safe Franklin Type Lightning Arrestor

Product Features and Benefits

• Low Cost
• Easy installation
• Maximum durability
• High level of protection

Model No	Description
USFT -01	Single Spike
USFT -02	Multi Spike
