Industrial Segment

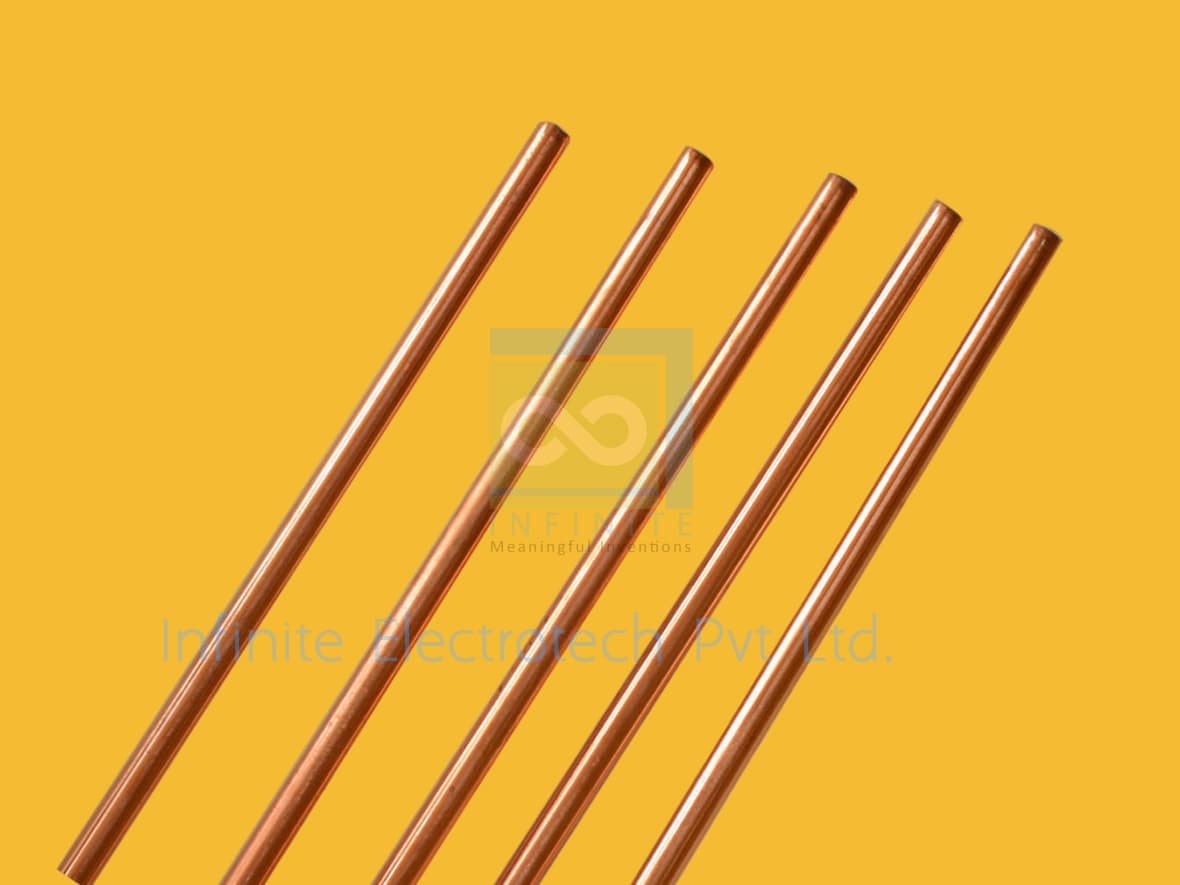

I. Copper Bonded Earthing Rod

Model No	Diameter (mm)	Length (mm)	Description
O-CB-003	12.7	2000	Omega Copper bonded earthing inclusive of *Earthing Electrode (Dia 12.7 mm Length 2000 mm), *Copper bonded earth terminal *Omega GEM- 25Kg bag.
O-CB-004	17.2	2000	Omega Copper bonded earthing inclusive of *Earthing Electrode (Dia 17.2 mm Length 2000 mm), *Copper bonded earth terminal *Omega GEM- 25Kg bag.
O-CB-005	25	2000	Omega Copper bonded earthing inclusive of *Earthing Electrode (Dia 25 mm Length 2000 mm), *Copper bonded earth terminal *Omega GEM- 25Kg bag.
O-CB-006	12.7	3000	Omega Copper bonded earthing inclusive of *Earthing Electrode (Dia 12.7 mm Length 3000 mm), *Copper bonded earth terminal *Omega GEM- 25Kg bag.
O-CB-007	17.2	3000	Omega Copper bonded earthing inclusive of *Earthing Electrode (Dia 17.2 mm Length 3000 mm), *Copper bonded earth terminal *Omega GEM- 25Kg bag.
O-CB-008	25	3000	Omega Copper bonded earthing inclusive of *Earthing Electrode (Dia 25 mm Length 3000 mm), *Copper bonded earth terminal *Omega GEM- 25Kg bag.
Copper Bonded Rod with Flange Type Earthing
O-CB-505	17.2	2000	Omega Copper bonded earthing inclusive of *Copper bonded electrode (Dia 17.2 mm, length 2000 mm) *Flange *Omega GEM-25kg back fill
O-CB-505	17.2	3000	Omega Copper bonded earthing inclusive of *Copper bonded electrode (Dia 17.2 mm, length 3000 mm) *Flange *Omega GEM-25kg back fill

II.HDGI Earthing

a. Pipe in Pipe Earthing

Model No	Diameter (mm)	Length (mm)	Description
O-PIP-GI03	48-50	2000	Omega PIP HDGI earthing kit inclusive of *Earthing pipe (Dia 48-50 mm, Length 2000 mm) *Omega GEM -25Kg bag.
O-PIP-GI04	76-80	2000	Omega PIP HDGI earthing kit inclusive of *Earthing pipe (Dia 76-80 mm, Length 2000 mm) *Omega GEM -25Kg bag.
O-PIP-GI05	48-50	3000	Omega PIP HDGI earthing kit inclusive of *Earthing pipe (Dia 48-50 mm, Length 3000 mm) *Omega GEM -25Kg bag.
O-PIP-GI03	76-80	3000	Omega PIP HDGI earthing kit inclusive of *Earthing pipe (Dia 76-80 mm, Length 3000 mm) *Omega GEM -25Kg bag.

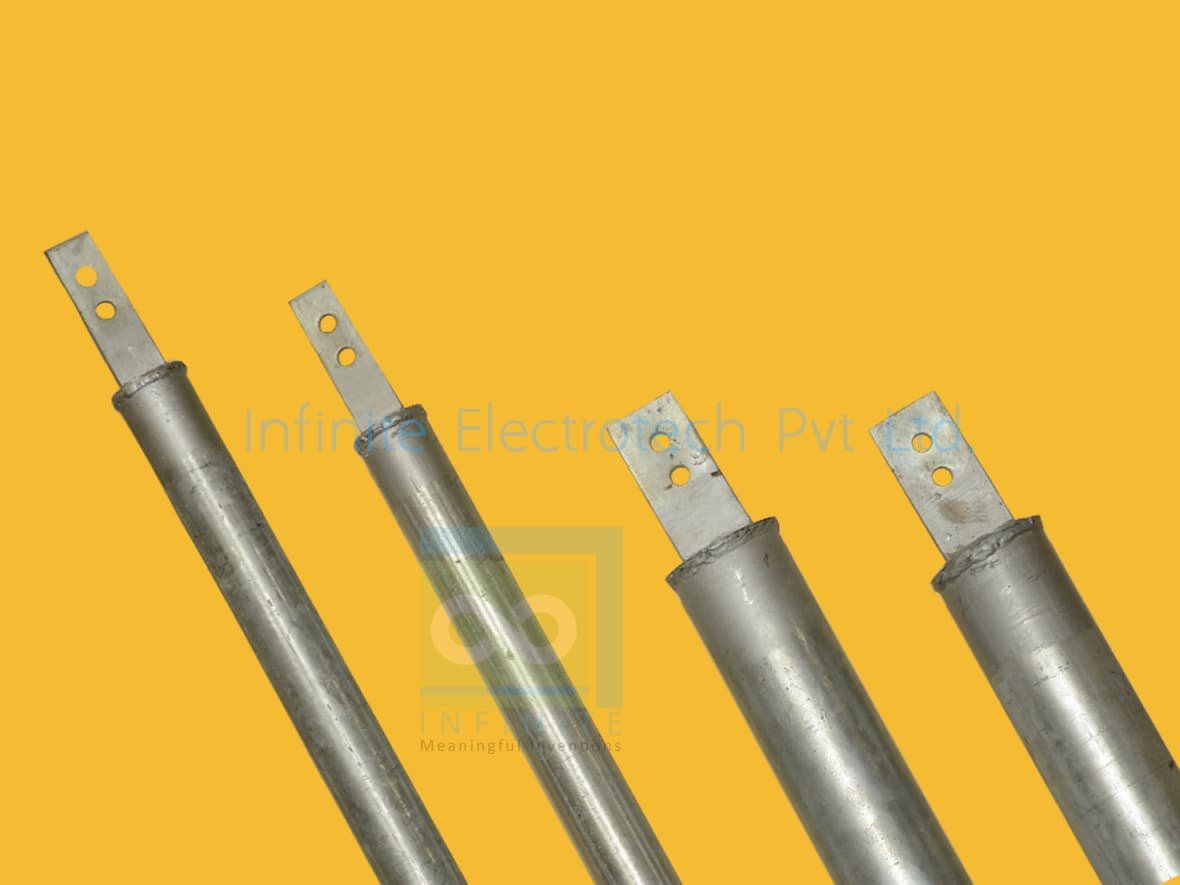

b. Pipe Earthing

Model No	Diameter (mm)	Length (mm)	Description
Omega G1-502	50	2000	Omega HDGI pipe earthing kit inclusive of *HDGI pipe (Dia 50 mm, length 2000 mm) *Flange type *Omega GEM-25 kg bag
Omega G1-503	50	3000	Omega HDGI pipe earthing kit inclusive of *HDGI pipe (Dia 50 mm, length 3000 mm) *Flange type *Omega GEM-25 kg bag
Omega G1-504	80	2000	Omega HDGI pipe earthing kit inclusive of *HDGI pipe (Dia 80 mm, length 2000 mm) *Flange type *Omega GEM-25 kg bag
Omega G1-505	80	3000	Omega HDGI pipe earthing kit inclusive of *HDGI pipe (Dia 80 mm, length 3000 mm) *Flange type *Omega GEM-25 kg bag

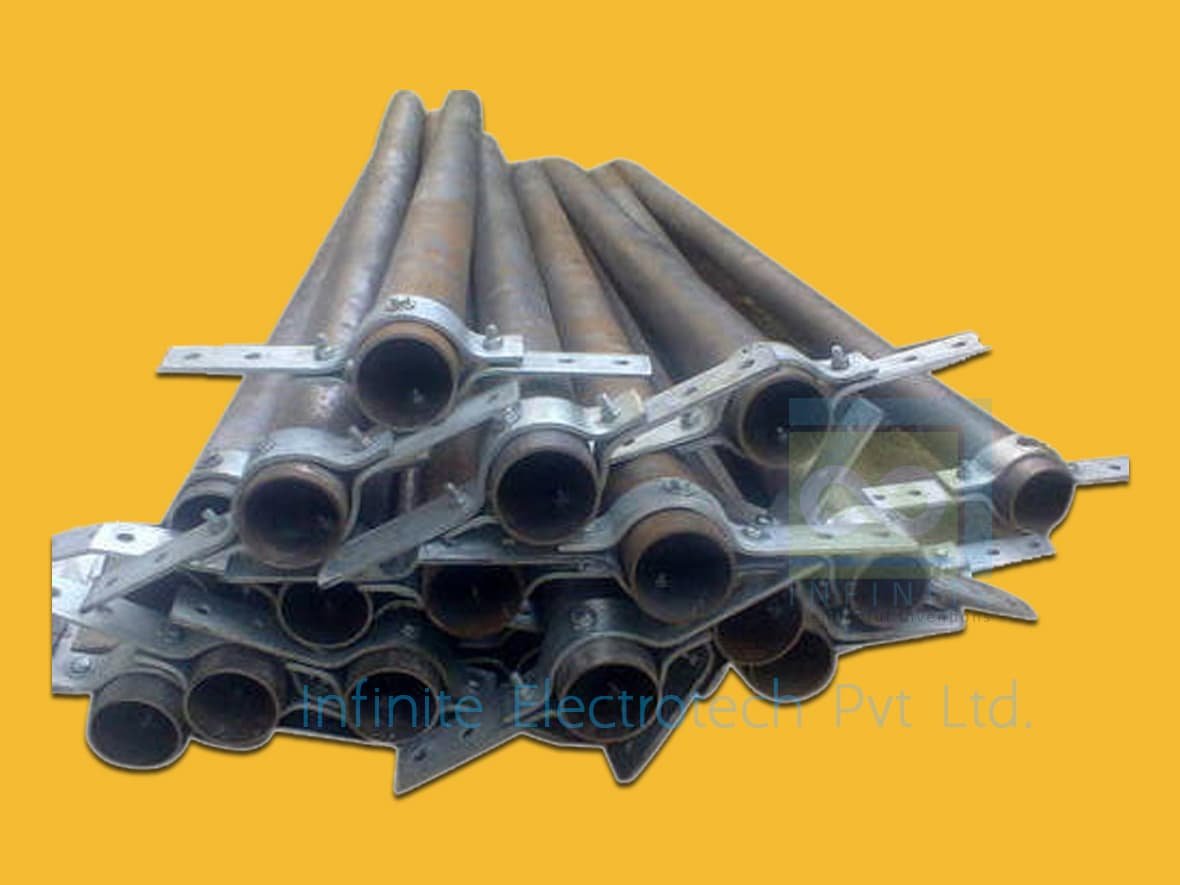

c. Pipe Earthing with Funnel and Clamp

Model No	Diameter (mm)	Length (mm)	Description
Omega GIF-40	40	2000	Omega HDGI pipe earthing kit inclusive of *GI pipe (Dia 40 mm, length 2000 mm) *Funnel and Clamp
Omega GIF-40	40	2500	Omega HDGI pipe earthing kit inclusive of *GI pipe (Dia 40 mm, length 2500 mm) *Funnel and Clamp
Omega GIF-40	40	3000	Omega HDGI pipe earthing kit inclusive of *GI pipe (Dia 40 mm, length 3000 mm) *Funnel and Clamp
Omega GIF-40 BFC	40	2000	Omega HDGI pipe earthing kit inclusive of *GI pipe (Dia 40 mm, length 2000 mm) *Funnel and Clamp *Omega GEM-50kg
Omega GIF-40 BFC	40	2500	Omega HDGI pipe earthing kit inclusive of *GI pipe (Dia 40 mm, length 2500 mm) *Funnel and Clamp *Omega GEM-50kg
Omega GIF-40 BFC	40	3000	Omega HDGI pipe earthing kit inclusive of *GI pipe (Dia 40 mm, length 3000 mm) *Funnel and Clamp *Omega GEM-50kg
Omega GIF-50	50	2000	Omega HDGI pipe earthing kit inclusive of *GI pipe (Dia 50 mm, length 2000 mm) *Funnel and Clamp
Omega GIF-50	50	2500	Omega HDGI pipe earthing kit inclusive of *GI pipe (Dia 50 mm, length 2500 mm) *Funnel and Clamp
Omega GIF-50	50	3000	Omega HDGI pipe earthing kit inclusive of *GI pipe (Dia 50 mm, length 3000 mm) *Funnel and Clamp
Omega GIF-50 BFC	50	2000	Omega HDGI pipe earthing kit inclusive of *GI pipe (Dia 50 mm, length 2000 mm) *Funnel and Clamp *Omega GEM-50kg
Omega GIF-50 BFC	50	2500	Omega HDGI pipe earthing kit inclusive of *GI pipe (Dia 50 mm, length 2500 mm) *Funnel and Clamp *Omega GEM-50kg
Omega GIF-50 BFC	50	3000	Omega HDGI pipe earthing kit inclusive of *GI pipe (Dia 50 mm, length 3000 mm) *Funnel and Clamp *Omega GEM-50kg

III.Cast Iron (CI) Earthing

a. Earth pipe with Flange

Model No	Diameter (mm)	Length (mm)	Description
Omega CIF-100	100	2500	Omega CI pipe earthing kit inclusive of *CI earth pipe (Dia 100 mm, Length 2500 mm) *Flange
Omega CIF-300	100	3000	Omega CI pipe earthing kit inclusive of *CI earth pipe (Dia 100 mm, Length 3000 mm) *Flange
Omega CIF-100 BFC	100	2500	Omega CI pipe earthing kit inclusive of *CI earth pipe (Dia 100 mm, Length 2500 mm) *Flange *Omega GEM – 50 kg
Omega CIF-100 BFC	100	3000	Omega CI pipe earthing kit inclusive of *CI earth pipe (Dia 100 mm, Length 3000 mm) *Flange *Omega GEM – 50 kg

b. Earth pipe with Funnel and Clamp

Model No	Diameter (mm)	Length (mm)	Description
Omega CIP-100	100	2500	Omega CI pipe earthing kit inclusive of *CI earth pipe (Dia 100 mm, Length 2500 mm) *Flange
Omega CIP-300	100	3000	Omega CI pipe earthing kit inclusive of *CI earth pipe (Dia 100 mm, Length 3000 mm) *Flange
Omega CIP-100 BFC	100	2500	Omega CI pipe earthing kit inclusive of *CI earth pipe (Dia 100 mm, Length 2500 mm) *Flange *Omega GEM – 50 kg
Omega CIP-100 BFC	100	3000	Omega CI pipe earthing kit inclusive of *CI earth pipe (Dia 100 mm, Length 3000 mm) *Flange *Omega GEM – 50 kg
